Edit ContentBY-9025 25X12W 4 IN 1 Matrix Beam Moving Head
Category: LED Moving Heads
Publish Time: 2014-10-08 19:29
_lit.jpg)

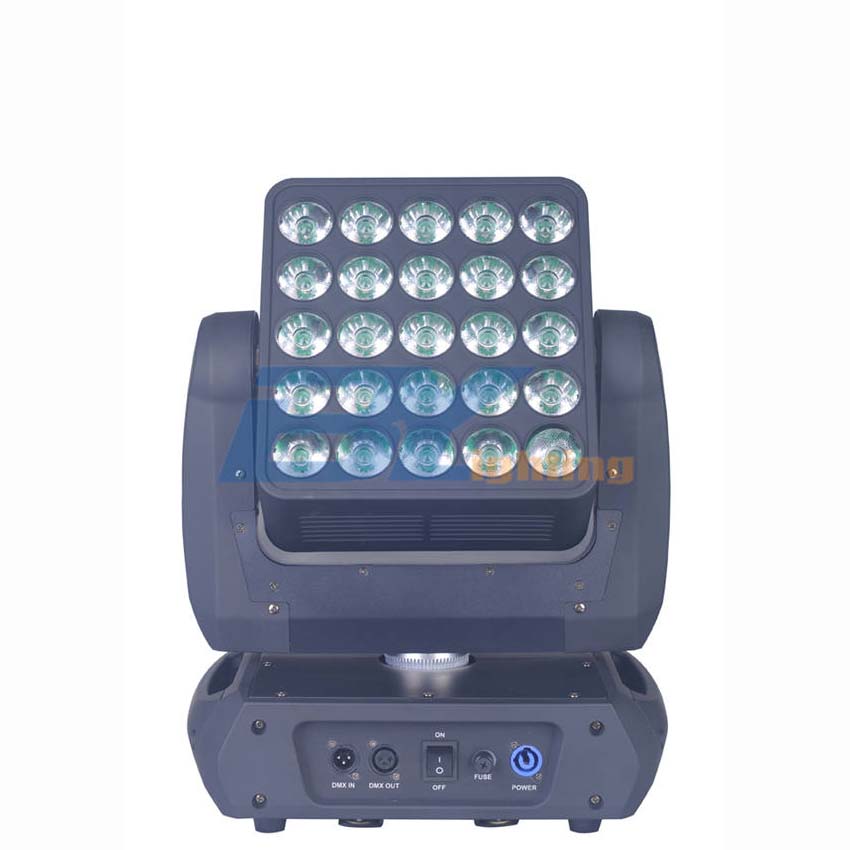

25X12W 4 IN 1 Matrix Beam Moving Head
25X12W 4 IN 1 Matrix Beam Moving Head
TECHNOLOGY REFERENCE
1. Power supply: AC110-240V/50-60HZ
2. Power consumption: 300W
3. Led source: 25x12W Cree Quad LEDS,each led with individual DMX Controls
4. Beam angle: 3-7°
5. Dimension: 39x39x48.5 cm
FUNCTIONS INTRODUCTION
1. International universal control signal: DMX512
2. Pan: continuous Pan rotation Tilt: continuous Tilt rotation
3. Motor: 3 phase step motor
4. DMX Channel: 121/21/16ch
5. Outstanding Beam effect,specific optic system
6. Pixel mapping effect : individual control of each LED source in expanded FULL
1. Power supply: AC110-240V/50-60HZ
2. Power consumption: 300W
3. Led source: 25x12W Cree Quad LEDS,each led with individual DMX Controls
4. Beam angle: 3-7°
5. Dimension: 39x39x48.5 cm
FUNCTIONS INTRODUCTION
1. International universal control signal: DMX512
2. Pan: continuous Pan rotation Tilt: continuous Tilt rotation
3. Motor: 3 phase step motor
4. DMX Channel: 121/21/16ch
5. Outstanding Beam effect,specific optic system
6. Pixel mapping effect : individual control of each LED source in expanded FULL
COLOR mode (RGBW offers the option to display numbers, letters, graphic effects
or images
7. DMX512, Sound, Auto, Master/Slave
8. Dimmer/Shutter
9. RGBW color mixing
10. Bulit –In Program
11. DMX Connectors: 3 pin XLR connector in and out
12. LCD screen, digital display menu function
7. DMX512, Sound, Auto, Master/Slave
8. Dimmer/Shutter
9. RGBW color mixing
10. Bulit –In Program
11. DMX Connectors: 3 pin XLR connector in and out
12. LCD screen, digital display menu function
