Technical Specifications
Control Protocol: Art-Net?, Kling-Net,DMX
Art-Net&DMX Channels: 120/8
Light Source: 40 LEDs (tri-color) SMD 5050,50,000 hours life expectancy
Pixels: 40 x 1
Pixel Pitch: 25 mm
PWM Frequency: free-run 600hz
Viewing Angle: 120°
Illuminance: 1174 NITS (clear filter),
828 NITS (frosted filter)
IP Rating: IP20
Linking: 16 inline Strip 1.0
Power and Current: 20 W, 0.11 A @ 120 V, 60 Hz
Power and Current: 33 W, 0.04 A @ 208 V, 60 Hz
Power and Current: 39 W, 0.03 A @ 230 V, 50 Hz
Weight: 4.4 lb (2 kg)
Dimensions: 39.4 x 1.4 x 4.6 in(1000 x 37 x 95 mm)

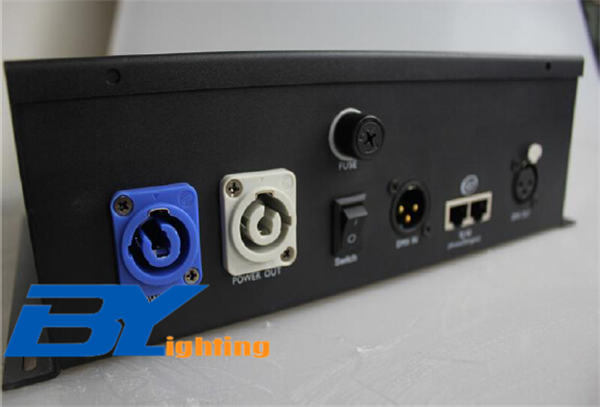

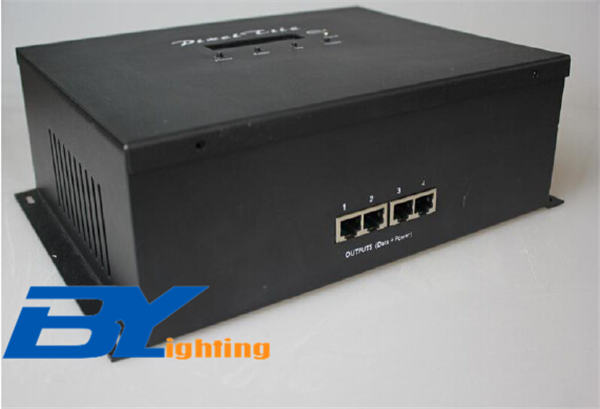

Controller (required): Strip controller
