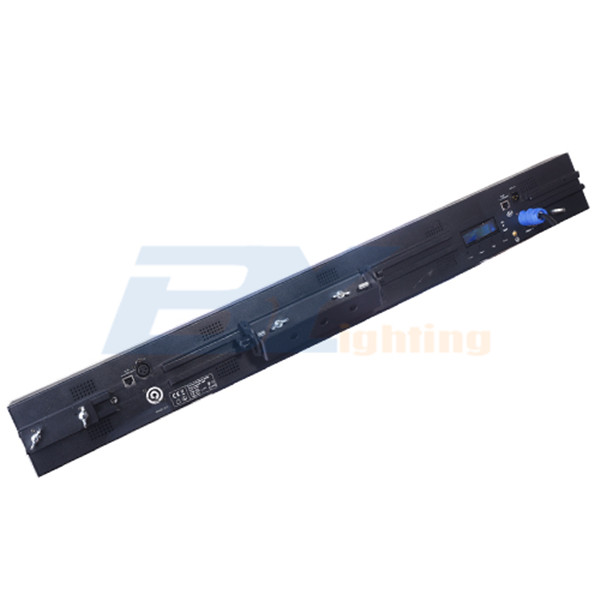

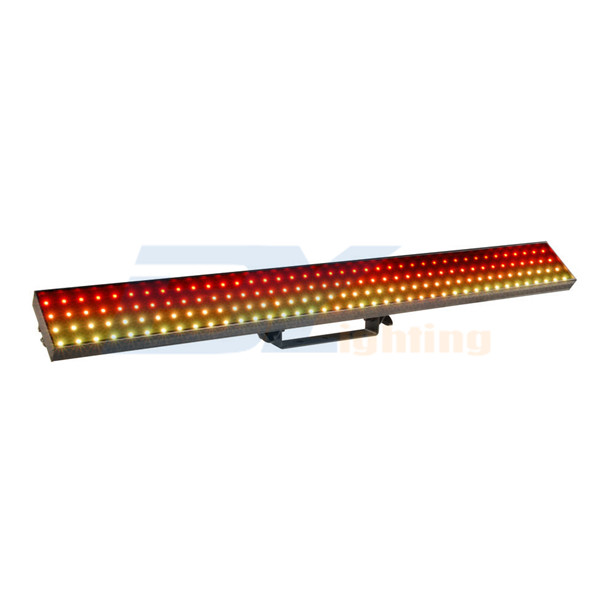

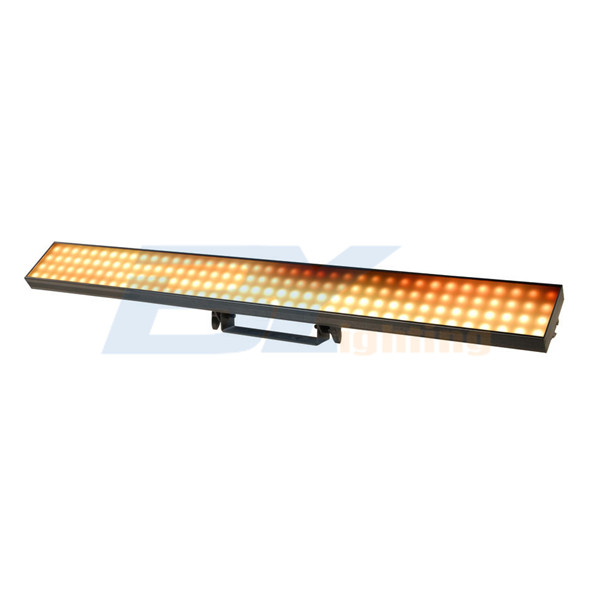

BY-4550 Led dream color bar
Category: LED Wall Washer
Publish Time: 2016-04-23 19:42
Led dream color bar
Light source and optics
4x40 (160 total) SMD5050 RGB/FC high-efficiency LEDs
Luminous flux: black cover = 540,20 NIT, milky cover = 2160,80 NIT, transparent cover = 2586,20 NIT
Pixel2pixel control
Viewing angle: 120°
Pixel pitch: 25 mm
Color synthesis: RGB/FullColor mixing (>16 million colors)
LEDs average life span: >50'000h
Electronics and features
Art-Net and Kling-Net&DMX control protocol supported
Channels Art-Net: 480
Channels Dmx:8/480
Power and Current: 51 W, 0.36 A @ 120 V, 60 Hz
Power and Current: 57 W,0.21 A @ 208 V, 60 Hz
Power and Current: 63 W, 0.18 A @ 230 V, 50 Hz
Weight: 7.6 lb (3.5 kg)
Dimensions: 39.4 x 4.2 x 4.6 in(1000 x 107 x 117 mm)
Near-effortless pixel mapping and video one meter bar, with four rows of LEDs, that combine to make a system that sets up in minutes with minimal technical know-how
Easily control each using Art-Net™ (3.0 compliant) or ArKaos Kling-Net and Art-net
Quickly configure these slim, one-meter strips and link up to
four in-lines with network cables or create vertical effects with new hardware linking system
Achieve wide viewing angles and excellent color rendering with tricolored SMD5050 LEDs
4x40 (160 total) SMD5050 RGB/FC high-efficiency LEDs
Luminous flux: black cover = 540,20 NIT, milky cover = 2160,80 NIT, transparent cover = 2586,20 NIT
Pixel2pixel control
Viewing angle: 120°
Pixel pitch: 25 mm
Color synthesis: RGB/FullColor mixing (>16 million colors)
LEDs average life span: >50'000h
Electronics and features
Art-Net and Kling-Net&DMX control protocol supported
Channels Art-Net: 480
Channels Dmx:8/480
Power and Current: 51 W, 0.36 A @ 120 V, 60 Hz
Power and Current: 57 W,0.21 A @ 208 V, 60 Hz
Power and Current: 63 W, 0.18 A @ 230 V, 50 Hz
Weight: 7.6 lb (3.5 kg)
Dimensions: 39.4 x 4.2 x 4.6 in(1000 x 107 x 117 mm)
Near-effortless pixel mapping and video one meter bar, with four rows of LEDs, that combine to make a system that sets up in minutes with minimal technical know-how
Easily control each using Art-Net™ (3.0 compliant) or ArKaos Kling-Net and Art-net
Quickly configure these slim, one-meter strips and link up to
four in-lines with network cables or create vertical effects with new hardware linking system
Achieve wide viewing angles and excellent color rendering with tricolored SMD5050 LEDs
covered by a smooth diffuser plate
Easily manage configuration and software updates with the networkbased remote web server Works
with ArKaos Media Master Express for a plug&play system that requires little training to operate
