FEATURES

Channel mode:DMX-512, 20CH

Color wheel:8 colors+white，split colors，rainbow effect

Rotated gobo wheel :2 glass gobos+5 metal gobos

+white,Rainbow effect,gobo shake

Fixed gobo wheel:8 fixed gobos+white,rainbow effect,gobo shake

Effect wheel 1:adjustable rotating speed and direction+rainbow effect

Effect whee 2:colorful effect wheel effect+frost effect

 ( colorful effect wheel adjustable rotating speed and direction)

Effect whee 3:3 facet prism and 8 facet prism,two prisms can be overlapped

( adjustable rotating speed and direction)

Zoom:;linear zoom

Strobe:0-20Hz/s

Dimmer:Variable electronic dimmer(0-100%)

Focus:Variable motorized focus

Control mode:DMX512,Sound,Master/Slave,Auto

Pan:540°/360°/180°，

8/16 bit movement resolution,automatic correction

Tilt:270°/180°/90°，

8/16 bit movement resolution,automatic correction

Integrated three features:beam,spot and wash

CONSTRUCTION

Data in/out:3-pin XLR connector IN/OUT

Power in/out:PowerCon IN/OUT

Motor:Three-phase motor

SPECIFICATIONS

Power supply:AC 100V-240V 60/50Hz

Power consumption：350W

Light source:200W white LED

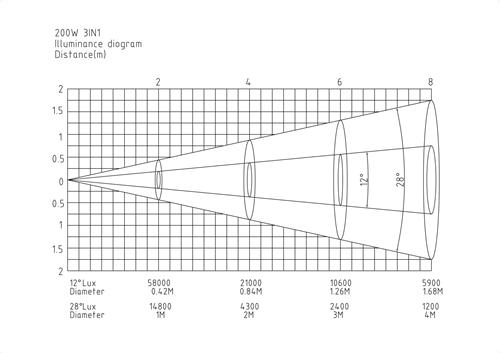

Beam angle：12°-28°

N.W:15kg

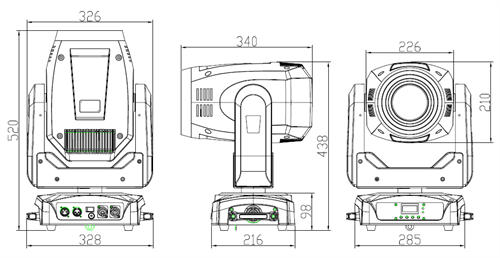

Product meas:328*216*520mm
